A fast and efficient physics simulation of mass-spring systems, implementing the optimization-based time integration algorithm from “Fast Simulation of Mass-Spring Systems” (Liu et al. 2013).

About

This project is from the Computer Graphics course at the University of Toronto (taught by Alec Jacobson). Rather than using traditional explicit time integration, this implementation uses a fast implicit method that treats physics simulation as an energy optimization problem.

The key innovation from the Liu et al. paper is a local-global iterative solver that alternates between:

1. Local step - Computing optimal spring directions (embarrassingly parallel)
2. Global step - Solving a sparse linear system for vertex positions

This approach combines the stability of implicit methods with the speed of explicit methods, enabling real-time simulation of complex cloth and soft body dynamics.

Features

• Fast Implicit Integration - Stable simulation with large time steps
• Sparse Matrix Optimization - Efficient $O(n^{1.5})$ performance using Cholesky factorization
• Constraint Handling - Penalty method for pinned vertices

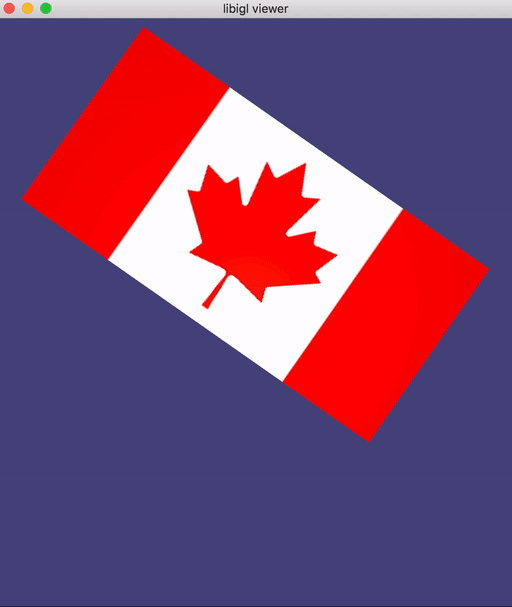

• Complex Cloth Simulation - Handles flags, skirts, nets, and chains
• Real-Time Performance - Interactive frame rates even for large meshes

Technical Highlights

Optimization-Based Physics

Instead of directly solving $\mathbf{f} = m\mathbf{a}$, the simulation minimizes a quadratic energy that combines:

• Elastic potential energy - Springs want to return to rest length
• Kinetic energy - Masses want to maintain momentum
• External forces - Gravity and user interaction

Sparse Linear Algebra

The system matrix $\mathbf{Q}$ is sparse (mostly zeros), allowing efficient factorization:

• Dense approach: $O(n^3)$ precomputation, $O(n^2)$ per frame
• Sparse approach: $O(n^{1.5})$ precomputation, nearly $O(n)$ per frame

The sparse implementation uses Eigen’s SimplicialLDLT to precompute the Cholesky factorization once, then performs fast forward/backward substitution each frame.

Technologies Used

• C++ - High-performance systems programming
• Eigen - Linear algebra library with excellent sparse matrix support
• Sparse Matrices - Memory-efficient representation using triplet lists
• Numerical Optimization - Local-global iterative solver
